Remote PDU Control | Cloud & Web-Based Power Management

JSY-MK-811 | JSY-MK-1113 | JSY1084 *8



Description:

- An IP PDU board (Intelligent Power Distribution Unit board) is the core electronic control component of a smart PDU, designed to manage, monitor, and distribute electrical power to rack-mounted IT equipment via a network. These boards enable remote outlet control (switching on/off), real-time power monitoring (voltage, current, power consumption), and environmental sensing (Temperature, Humidity, Water Immersion, Door Access, Control Smoke) for data center efficiency.



-   Manage power from anywhere with Remote PDU Control. Web interface, mobile app, and API support. Schedule reboots, monitor usage, and receive alerts.


Product Detail

OEM/ODM SERVICES

CUSTOMER SERVICES

Product Tags

Related Video

Feedback (2)

We strive for excellence, service the customers", hopes to become the best cooperation team and dominator enterprise for personnel, suppliers and customers, realizes value share and continuous promotion for Wireless Energy Meter , Portable Kwh Meter , Electric Energy Custom-Made , We Sincerely welcome clients from all around the entire world to visit us, with our multifaceted cooperation and get the job done with each other to develop new markets, build win-win outstanding future.
Remote PDU Control | Cloud & Web-Based Power Management Detail:

pdu pcb board

IPDU Product Components

pdu pcb board

Model No.: JSY-MK-811

Intelligent IP PDU PCB Main Board

  • ① 2.0-inch LCD Display
  • ② Protocol - SNMP V1/V2c/V3 | Modbus-RTU
  • ③ 1 port - Ethernet [Network connection/remote access]
  • ④ 2 Ports - RS485 [Cascade/parameter configuratio]
  • ⑤ 1 port - USB [software upgrade]
  • ⑥ 2 ports - Temperature and humidity
  • ⑦ 2 ports - Switch input [ Supports water immersion, door access control, smoke detection]
  • ⑧ 1 port - Switch output
  • ⑨ 1 port - RS485 [reserved function]
pdu pcb board

Model No.: JSY-MK-1113

Single Phase Power Meter Board



  • - Voltage: 176-264V
  • - Current: 63A
  • - Power supply: 176-264V
  • - Communication interface: RS485
  • - Frequency: 50Hz
  • - Accuracy: ±1%

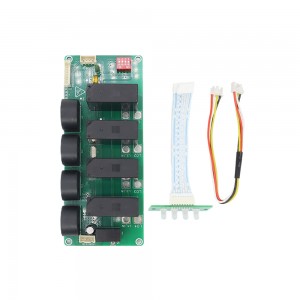

relay board

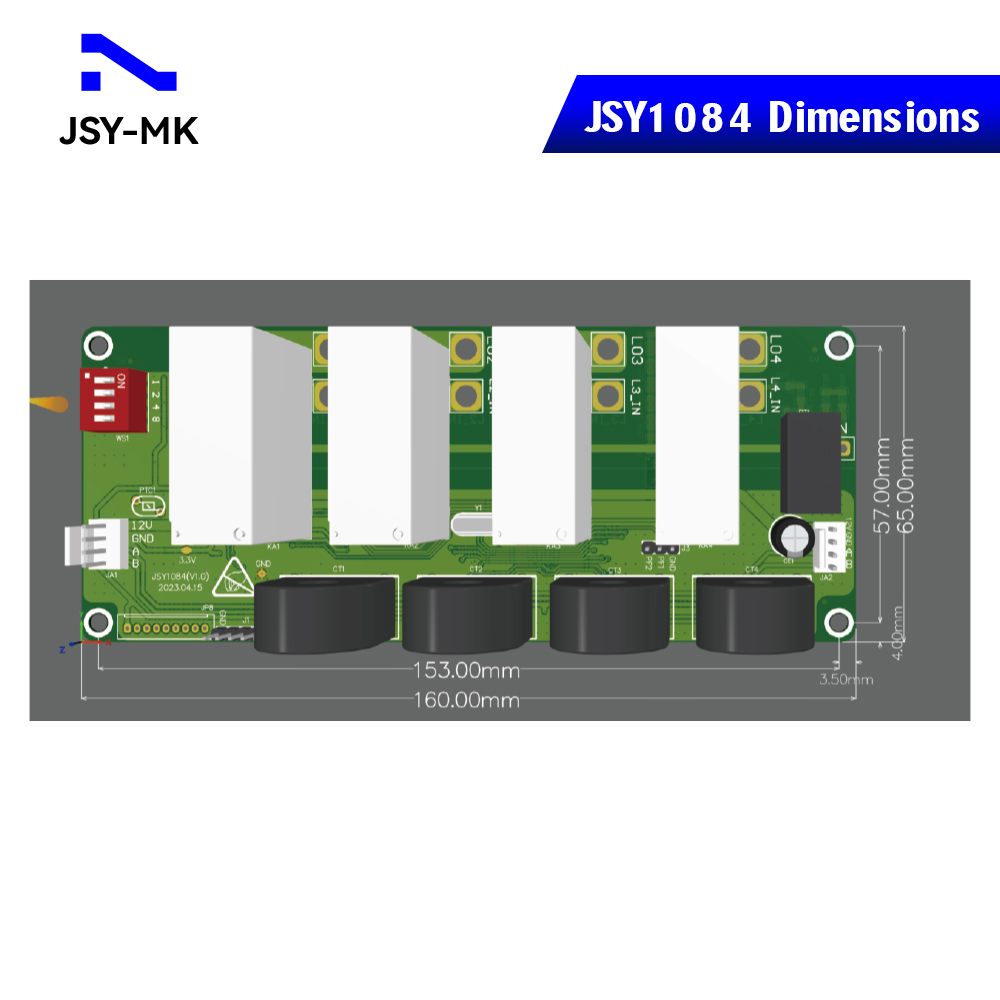

Model No.: JSY1084

4-channel Relay Control Board(magnetically held relay)



  • - 220V AC input
  • - 4-channel 50A current detection
  • - 4-channel 50A magnetic retention relay control
  • - 4-channel indicator output
  • - Accuracy: ±1%

IPDU Product Introduce

  • Single-phase and three-phase smart PDU meters are based on the innovative SUM (sustainable, scalable and maintainable) design concept technology. As a key component of the metering cabinet power distribution unit (PDU), after being installed into the main body of the PDU, it can Provides active metering capabilities for energy optimization and circuit protection. User-set alarm thresholds can effectively reduce risks by warning of potential circuit overloads through real-time local and remote alarms. Metered rack PDUs provide power usage data to support data center managers in making informed decisions about load balancing and proper IT sizing, thereby significantly reducing total cost of ownership. Users can configure metered cabinet PDU via Ethernet access or RS485. This series of products can be widely used in data center rooms such as IDC, banks, securities, governments, and enterprises.
pdu pcb board
Remote PDU Control
pdu pcb board
JSY-MK-811/668 Function Introduction
Performance parameters Technical indicators
Electrical parameters Input
Optional		 Single Phase Input voltage: 176-264V
Maximum total load current: 63A
Output Output Voltage 176-264V
Output Current 8A, optional high current 20A
Output Port Optional, up to 48 ports
Frequency 50Hz
User interface Display TFT color screen, 2.0 Inches
Operation buttons Up, down, set, reset buttons
Communication interface One Ethernet, two RS485
Temperature and humidity interface Two ports
Switch input interface Two ports, 4 channels
Switch output interface One port, 2 channels
Electrical parameter measurement PDU total measurement Voltage, current, power, electric energy
Each output measurement Voltage, current, power, electric energy
Each output can be remotely turned on/off Yes
Customize the power-on/power-off sequence and interval time for each output Yes
Administrator permissions can be defined in different levels Yes
Customize alarm signal thresholds Voltage and current adjustable
Cascade function Yes, 4 units can be cascaded
Monitoring function Load current monitoring
Load power monitoring
Voltage monitoring
Power monitoring
Ambient temperature and humidity monitoring
Setting the function Load current upper and lower limit settings
Ambient temperature and humidity upper and lower limit settings
Email alert address settings
SNMP (V1, V2c,V3) settings
Network parameter settings (IP, gateway, mask, DNS )
Alarm function System Alerts When the load current exceeds the rated value
When the temperature and humidity exceed the limit
Custom Alerts When the load current exceeds the rated value
When the temperature and humidity exceed the limit
Alerts Way Buzzer beeps
LCD value flashes
Automatically send an email to the system administrator
SNMP sends Trap alarm status information
Serial communication background sends alarm status information
Access method WEB access and control through IE
SNMP (V1,V2c,V3) access and control via standard network management workstation
User Management User ID and password settings
Environment Operating temperature: -20 ~ 60℃
Extreme operating temperature: -30 ~ 70℃
Relative humidity: 10 ~ 90%
Storage and transportation temperature limit: -40 ~ 70℃



pdu pcb board
pdu pcb board
relay board

IPDU Product Network Functions Interface Show

  • - Support WEB method to log in to the management page, and use user name + password to realize the login function.
  • - The interface includes the main interface, output information interface, sensor information interface, network setting interface, device information interface, user management interface and factory reset interface.
pdu
Factory Direct Sale PDU
Hot Swap Meter Head
Single-phase Ammeter
Intelligent IP Meter
Product detail pictures:

Remote PDU Control | Cloud & Web-Based Power Management detail pictures

Remote PDU Control | Cloud & Web-Based Power Management detail pictures

Remote PDU Control | Cloud & Web-Based Power Management detail pictures

Remote PDU Control | Cloud & Web-Based Power Management detail pictures

Remote PDU Control | Cloud & Web-Based Power Management detail pictures

Remote PDU Control | Cloud & Web-Based Power Management detail pictures

Remote PDU Control | Cloud & Web-Based Power Management detail pictures
