Intelligent PDU PCBA Board Customized OEM Ethernet SNMP V3 Managed Metered PDU for Industrial Commercial Network Cabinet

JSY-MK PDU Modules

Description:

- An IP PDU board (Intelligent Power Distribution Unit board) is the core electronic control component of a smart PDU, designed to manage, monitor, and distribute electrical power to rack-mounted IT equipment via a network. These boards enable remote outlet control (switching on/off), real-time power monitoring (voltage, current, power consumption), and environmental sensing (Temperature, Humidity, Water Immersion, Door Access, Control Smoke) for data center efficiency.

- Avoid inrush current with Power Sequencing PDU. Programmable power-up delays, staged startup, and remote control. Ideal for racks with high-wattage equipment.

Contact

Product Detail

OEM/ODM SERVICES

CUSTOMER SERVICES

Product Tags

Feedback (2)

We are commitment to offer you the aggressive price tag ,exceptional products and solutions high-quality, as well as fast delivery for Smart Power Meter Monitor , Energy Meter Monitor , Detection-Type Intelligent Pdu , We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Intelligent PDU PCBA Board Customized OEM Ethernet SNMP V3 Managed Metered PDU for Industrial Commercial Network Cabinet Detail:

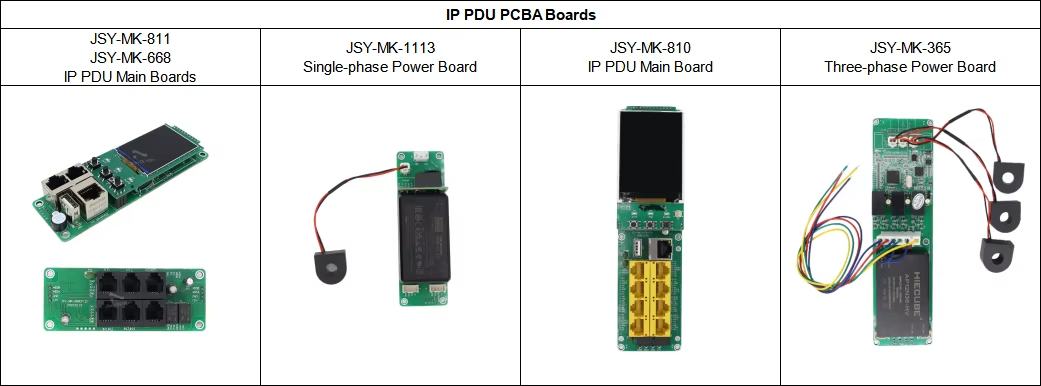

IPDU Product Components

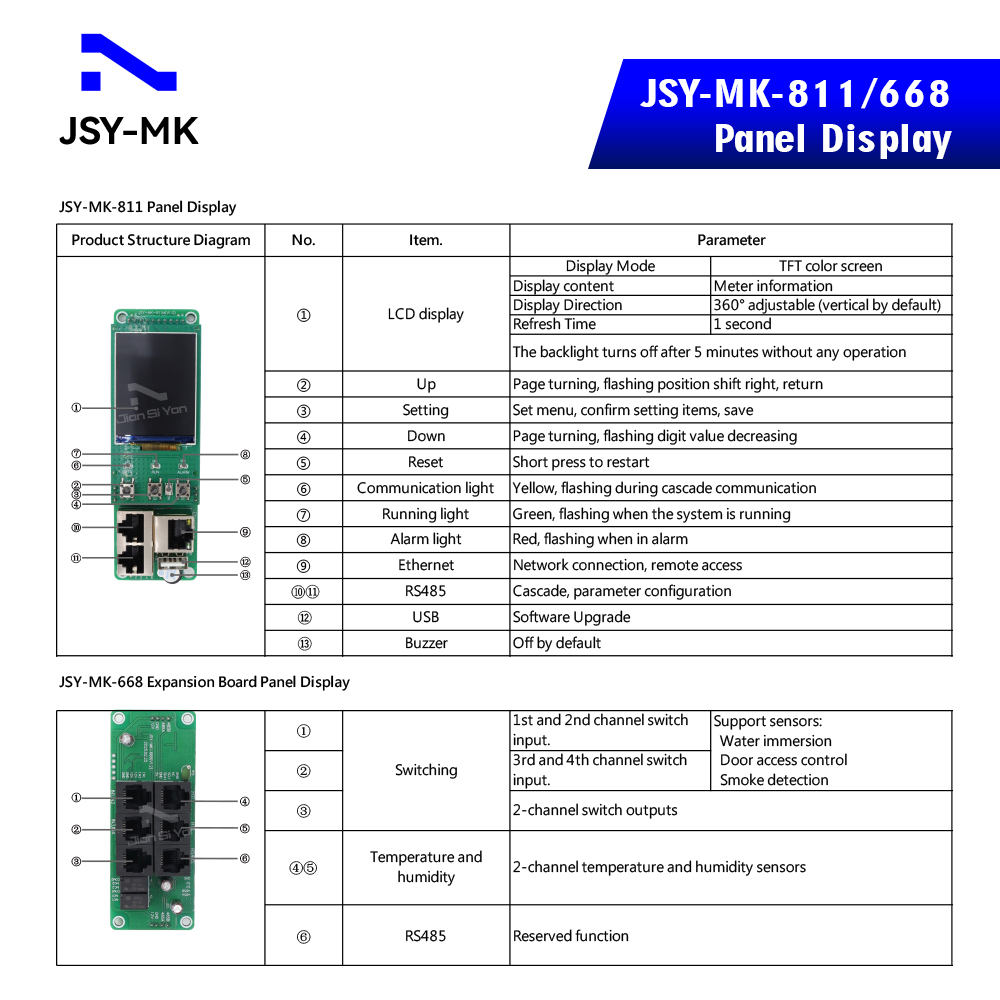

Model No.: JSY-MK-811

Intelligent IP PDU PCB Main Board

①2.0-inch LCD Display
②Ethernet(Network connection, remote access), *1 port
③RS485 cascade/parameter configuratio, * 2 Ports
④USB(software upgrade), *1 port
Expansion Board[6 ports, support]
①Temperature and humidity sensor
②Water immersion sensor
③Door access control sensor
④Smoke detection sensor

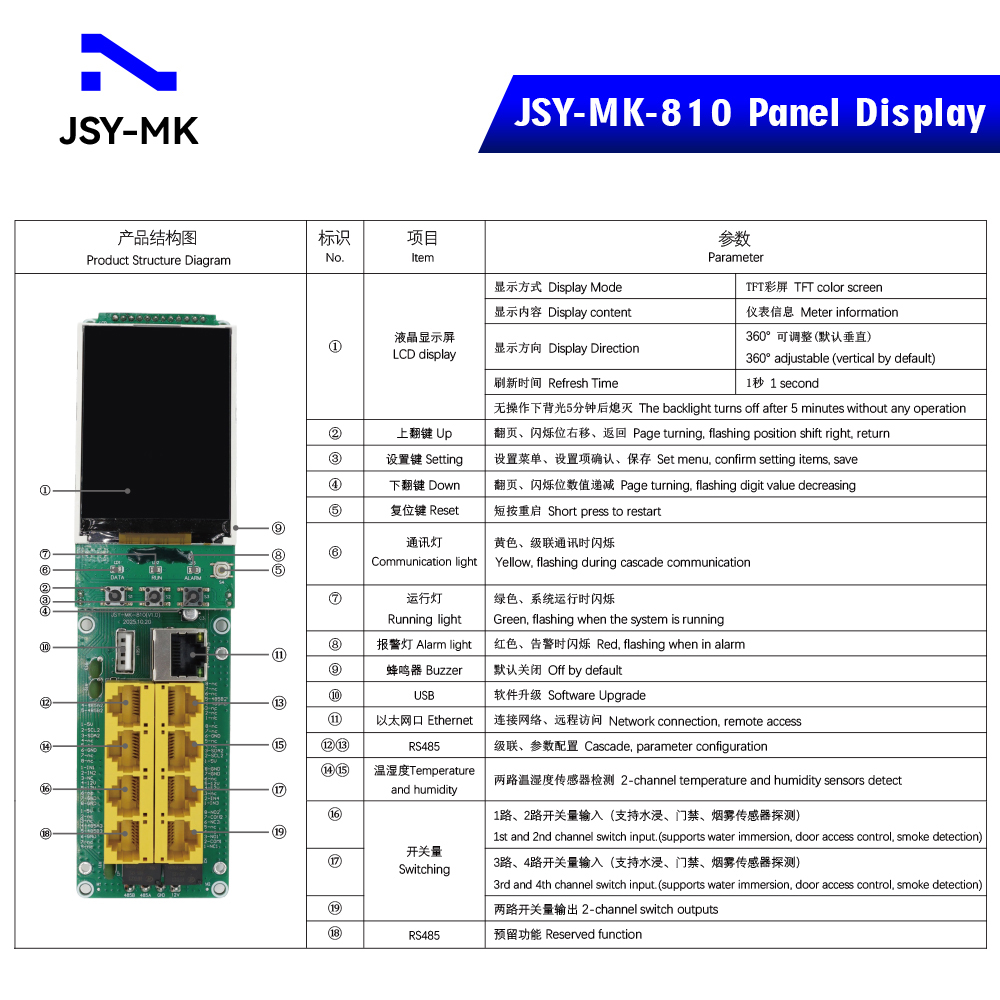

Model No.: JSY-MK-810

Intelligent PDU PCB main board[ 1 Phase or 3 Phase ]

① 2.8-inch LCD Display
② Protocol - SNMP V1/V2c/V3 | Modbus-RTU
③ 1 port - Ethernet [Network connection/remote access]
④ 2 Ports - RS485 [Cascade/parameter configuratio]
⑤ 1 port - USB [software upgrade]
⑥ 2 ports - Temperature and humidity
⑦ 2 ports - Switch input [ Supports water immersion,door access control, smoke detection]
⑧ 1 port - Switch output
⑨ 1 port - RS485 [reserved function]

IPDU Product Introduce

Single-phase and three-phase smart PDU meters are based on the innovative SUM (sustainable, scalable and maintainable) design concept technology. As a key component of the metering cabinet power distribution unit (PDU), after being installed into the main body of the PDU, it can Provides active metering capabilities for energy optimization and circuit protection. User-set alarm thresholds can effectively reduce risks by warning of potential circuit overloads through real-time local and remote alarms. Metered rack PDUs provide power usage data to support data center managers in making informed decisions about load balancing and proper IT sizing, thereby significantly reducing total cost of ownership. Users can configure metered cabinet PDU via Ethernet access or RS485. This series of products can be widely used in data center rooms such as IDC, banks, securities, governments, and enterprises.

Function Introduction
Performance parameters			Technical indicators
Electrical parameters	Input Optional	Single Phase	Input voltage: 176-264V

			Maximum total load current: 63A
		Three-phase	Input voltage: 3*220V
			Maximum total load: 3*63Acurrent
	Output	Output Voltage	176-264V
		Output Current	8A, optional high current 20A
		Output Port	Optional, up to 48 ports
		Frequency	50Hz
User interface		Display	TFT color screen
		Operation buttons	Up, down, set, reset buttons
		Communication interface	One Ethernet, two RS485
		Temperature and humidity interface	Two ports
		Switch input interface	Two ports, 4 channels
		Switch output interface	One port, 2 channels
Electrical parameter measurement		PDU total measurement	Voltage, current, power, electric energy
		Each output measurement	Voltage, current, power, electric energy
		Each output can be remotely turned on/off	Yes
		Customize the power-on/power-off sequence and interval time for each output	Yes
		Administrator permissions can be defined in different levels	Yes
		Customize alarm signal thresholds	Voltage and current adjustable
		Cascade function	Yes, 4 units can be cascaded
Monitoring function		Load current monitoring
		Load power monitoring
		Voltage monitoring
		Power monitoring
		Ambient temperature and humidity monitoring
Setting the function		Load current upper and lower limit settings
		Ambient temperature and humidity upper and lower limit settings
		Email alert address settings
		SNMP (V1, V2c,V3) settings
		Network parameter settings (IP, gateway, mask, DNS )
Alarm function	System Alerts	When the load current exceeds the rated value
		When the temperature and humidity exceed the limit
	Custom Alerts	When the load current exceeds the rated value
		When the temperature and humidity exceed the limit
	Alerts Way	Buzzer beeps
		LCD value flashes
		Automatically send an email to the system administrator
		SNMP sends Trap alarm status information
		Serial communication background sends alarm status information
Access method		WEB access and control through IE
		SNMP (V1,V2c,V3) access and control via standard network management workstation
User Management		User ID and password settings
Environment		Operating temperature	-20 ~ 60℃
		Extreme operating temperature	-30 ~ 70℃
		Relative humidity	10 ~ 90%
		Storage and transportation temperature limit	-40 ~ 70℃

IPDU Product Network Functions Interface Show

- Support WEB method to log in to the management page, and use user name + password to realize the login function.
- The interface includes the main interface, output information interface, sensor information interface, network setting interface, device information interface, user management interface and factory reset interface.

Product detail pictures:
