JSY-MK-163T Single Phase AC Acquisition Module Bidirectional TTL Modbus-RTU

JSY-MK-163T

Description:

  • Measurement accuracy meets the class 1 accuracy standard of IEC62053-21.
  • Accurate measurement of voltage, current, power, electricity and other parameters.
  • 1 channel TTL communication interface, default 3.3V.
  • Supports bi-directional measurements.
  • Adopt Modbus-RTU protocol.
  • RMS measurement method, special power measurement chip.
  • Can be customized according to product features.

Product Detail

OEM/ODM SERVICES

CUSTOMER SERVICES

Product Tags

Related Video

Feedback (2)

"Sincerity, Innovation, Rigorousness, and Efficiency" would be the persistent conception of our corporation to the long-term to establish collectively with customers for mutual reciprocity and mutual benefit for Clamp On Power Meter 3 Phase , Wifi Electric Meter , Wifi Energy Meter , We glance forward to giving you with our solutions while in the in the vicinity of future, and you will come across our quotation may be very affordable and the top quality of our merchandise is extremely outstanding!
JSY-MK-163T Single Phase AC TTL Acquisition Module Bidirectional 50A Detail:

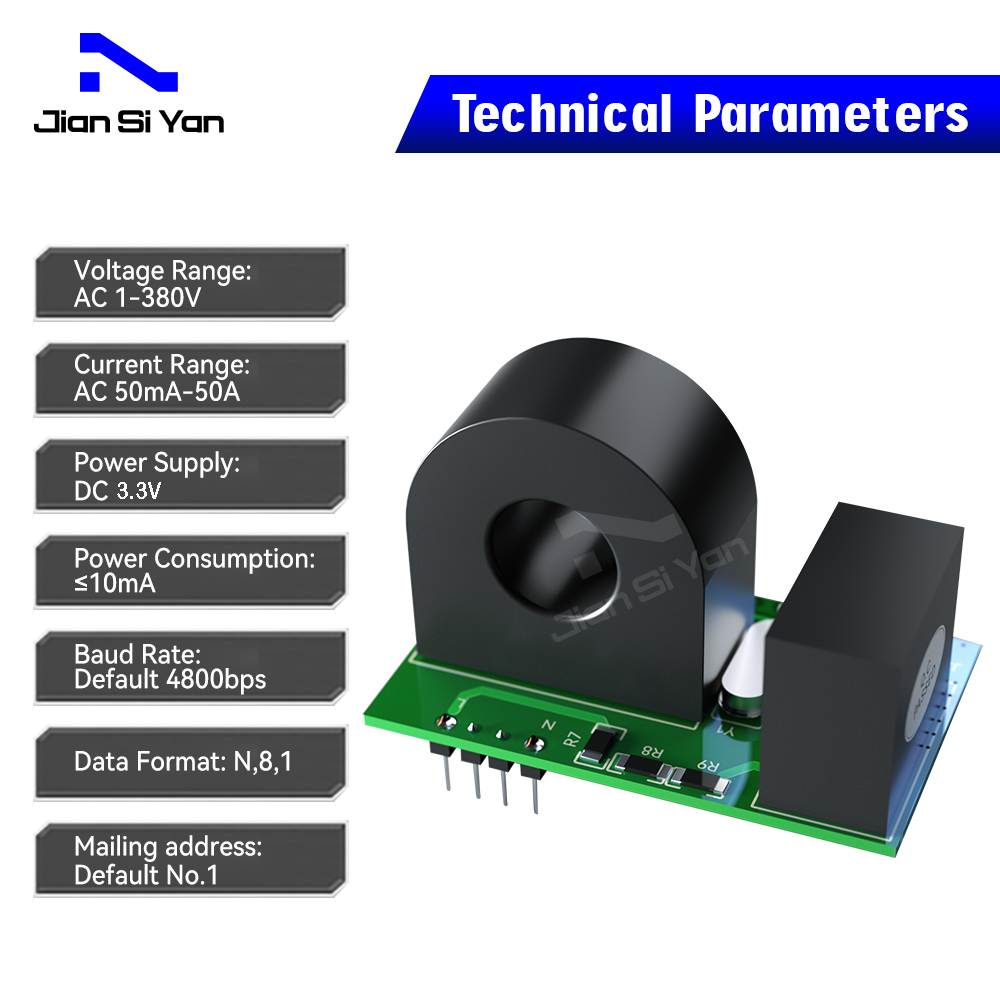

Underlying Parameter

Measured parameters:
Product model: JSY-MK-163T
Voltage range: AC 1-300V ±0.5%F.S
Current range： AC 50mA-50A ±0.5%F.S
Measurement Parameters Voltage Current Active Power Active Power Power Factor Frequency
Voltage resolution: 0.01V
Current resolution: 0.01A
Active power： IEC62053-21 classes 1  Units 1W
Electric energy： IEC62053-21 classes 1  Units 0.01kWh
Communication parameter
Interface type: 3.3V TTL
Communication protocol: Modbus-RTU
Data format： N,8,1
Communication baud rate: Default 4800bps
Communication address Default communication address 1
Product performance
Product power consumption: ≤10mA
Power supply: DC 3.3V
Work environment： -20~+60℃
 Size: 43.3*25.6*29mm

Wiring and hole position description

JSY-MK-163 (5)
Product detail pictures:

JSY-MK-163T Single Phase AC TTL Acquisition Module Bidirectional 50A detail pictures

JSY-MK-163T Single Phase AC TTL Acquisition Module Bidirectional 50A detail pictures

JSY-MK-163T Single Phase AC TTL Acquisition Module Bidirectional 50A detail pictures

JSY-MK-163T Single Phase AC TTL Acquisition Module Bidirectional 50A detail pictures

JSY-MK-163T Single Phase AC TTL Acquisition Module Bidirectional 50A detail pictures

JSY-MK-163T Single Phase AC TTL Acquisition Module Bidirectional 50A detail pictures
