PDU Distribution Boards Manufacturer Metered PDU Remote Control Management Data Center
JSY-MK-351.003



Description:

Professional-grade network remote monitoring and management power distribution system is the latest scientific research achievement in the field of power distribution technology after years of dedicated research. This product is based on the development trend of the world’s future power distribution monitoring and management technology, combined with the technical requirements of the modern data center application environment, using the latest core technology with completely independent intellectual property rights, integrating network communication, power distribution, power metering and other technologies, and is the latest network remote monitoring and management power distributor carefully designed.


Product Detail

OEM/ODM SERVICES

CUSTOMER SERVICES

Product Tags

Related Video

Feedback (2)

We're going to dedicate ourselves to offering our esteemed shoppers with the most enthusiastically considerate solutions for Electrical Monitoring System , 3 Phase Energy Monitor , Iot Electricity Meter , We are hunting ahead to building positive and beneficial links with the businesses round the globe. We warmly welcome you to definitely call us to begin discussions on how we can easily bring this into being.
PDU Distribution Board | PDU Main PCB Module | Power Module | Relay Module Detail:

IPDU Product Components

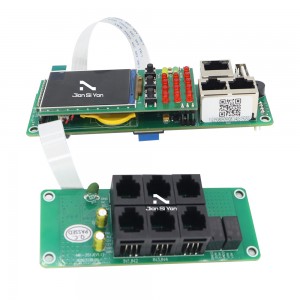

IP PDU PCB main Board

Model No.: JSY-MK-351

Intelligent IPDU Header

[ Adapt to 1 Phase and 3 Phase ]
  • ①2.0-inch LCD Display
  • ②Ethernet port (1 way)
  • ③IN OUT cascade port (1 way, RS485 communication)
  • ④6 RJ11 ports (sensors 4 inputs and 2 outputs)【2-channel temperature and humidity, 4-channel switch inputs(supports Water immersion, door access control, smoke detection), 2-channel switch outputs, 1-channel 485(Reserved function)】
  • ⑤Hot-swappable port
PDU Power board

Model No.: JSY1073

Single phase power module

  • ①Voltage: 220V
  • ②Current: 32A
  • ③Frequency: 50Hz
  • ④Accuracy: ±1%

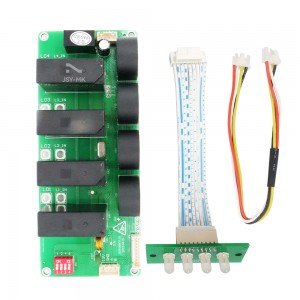

relay board

Model No.: JSY1084

4-channel Relay Control Board(magnetically held relay)

  • ①220V AC input
  • ②4-channel 50A current detection
  • ③4-channel 50A magnetic retention relay control
  • ④4-channel indicator output
  • ⑤Accuracy: ±1%
pdu pcb

IPDU Product Introduce

  • Single-phase and three-phase smart PDU meters are based on the innovative SUM (sustainable, scalable and maintainable) design concept technology. As a key component of the metering cabinet power distribution unit (PDU), after being installed into the main body of the PDU, it can Provides active metering capabilities for energy optimization and circuit protection. User-set alarm thresholds can effectively reduce risks by warning of potential circuit overloads through real-time local and remote alarms. Metered rack PDUs provide power usage data to support data center managers in making informed decisions about load balancing and proper IT sizing, thereby significantly reducing total cost of ownership. Users can configure metered cabinet PDU via Ethernet access or RS485. This series of products can be widely used in data center rooms such as IDC, banks, securities, governments, and enterprises.

IPDU Product Network Functions Interface Show

  • - Support WEB method to log in to the management page, and use user name + password to realize the login function.
  • - The interface includes the main interface, output information interface, sensor information interface, network setting interface, device information interface, user management interface and factory reset interface.
pdu
Factory Direct Sale PDU
Hot Swap Meter Head
Single-phase Ammeter
Intelligent IP Meter
