JSY-MK-163TG 50A TTL Modbus Protocol Bidirectional Single-phase Energy Meter Module With Anti-DC Component CT

JSY-MK-163TG

Description:

Measurement accuracy meets the class 1 accuracy standard of IEC62053-21.
Accurate measurement of voltage, current, power, electricity and other parameters.
1 channel TTL communication interface, default 5V.
Supports bi-directional measurements.
Adopt Modbus-RTU protocol.
RMS measurement method, special power measurement chip.
Can be customized according to product features.

Contact

Product Detail

OEM/ODM SERVICES

CUSTOMER SERVICES

Product Tags

Feedback (2)

Like a result of ours specialty and repair consciousness, our enterprise has won a superb popularity amid buyers everywhere in the environment for Three-Phase Voltage And Current Collector , Energy Analyzer Meter , Single channel electricity meter module , The main goal of our company is to live a satisfactory memory to all the customers, and establish a long term business relationship with buyers and users all over the world.

JSY-MK-163TG 50A TTL Bidirectional Single-phase Energy Meter Module With Anti-DC Component CT Detail:

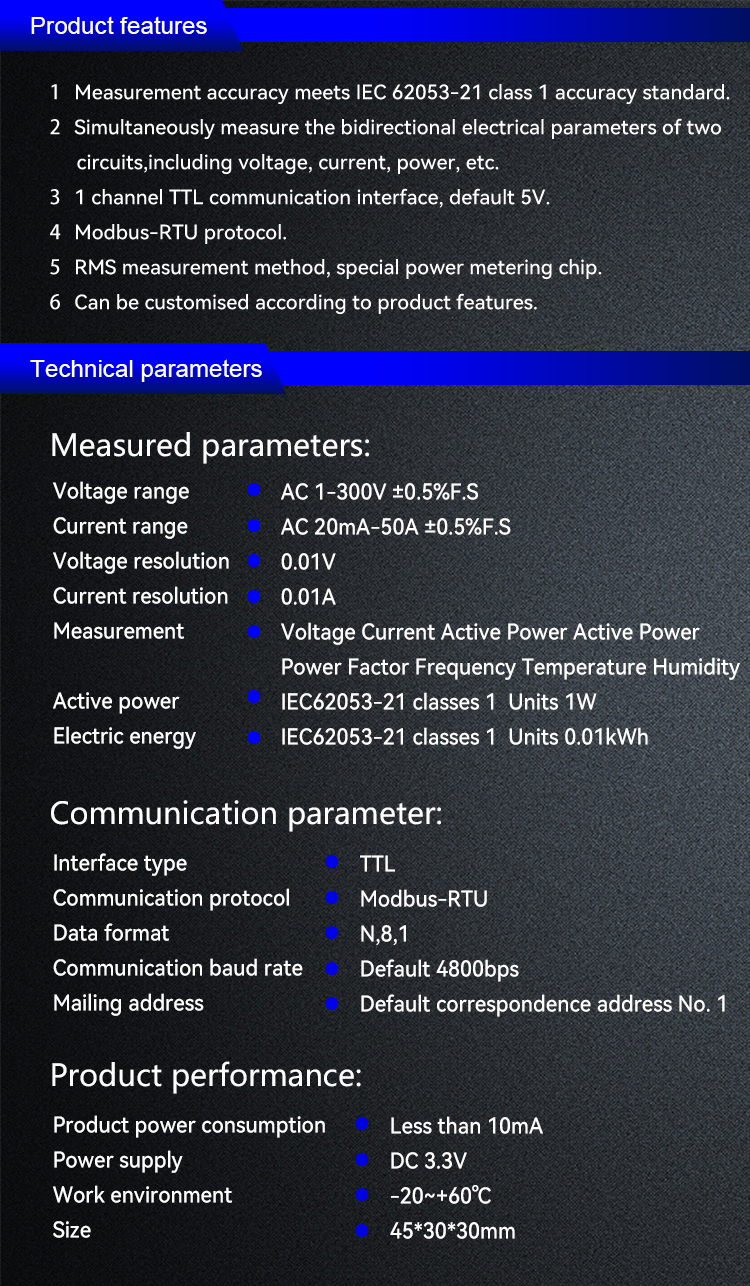

Underlying Parameter

Measured parameters:
Product model:	JSY-MK-163TG
Voltage range:	AC 1-300V ±0.5%F.S
Current range：	AC 20mA-50A ±0.5%F.S
Measurement Parameters	Voltage Current Active Power Active Power Power Factor Frequency
Voltage resolution:	0.01V
Current resolution:	0.01A
Active power：	IEC62053-21 classes 1 Units 1W
Electric energy：	IEC62053-21 classes 1 Units 0.01kWh

Communication parameter
Interface type:	3.3V TTL
Communication protocol:	Modbus-RTU
Data format：	N,8,1
Communication baud rate:	Default 4800bps
Communication address	Default communication address 1

Product performance
Product power consumption:	≤10mA
Power supply:	DC 3.3V
Work environment：	-20~+60℃

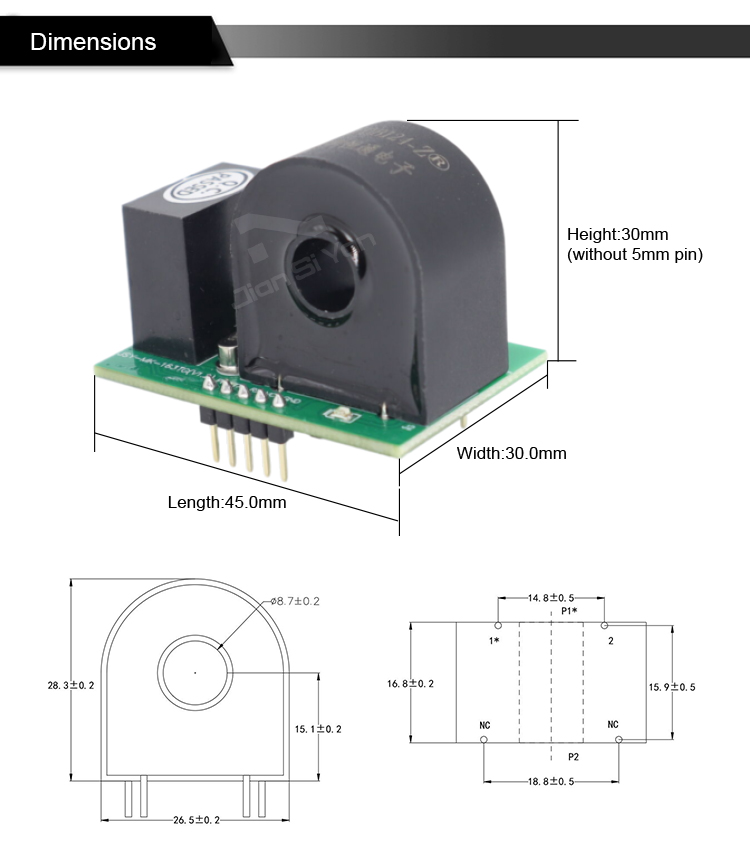

Size:	45*30mm

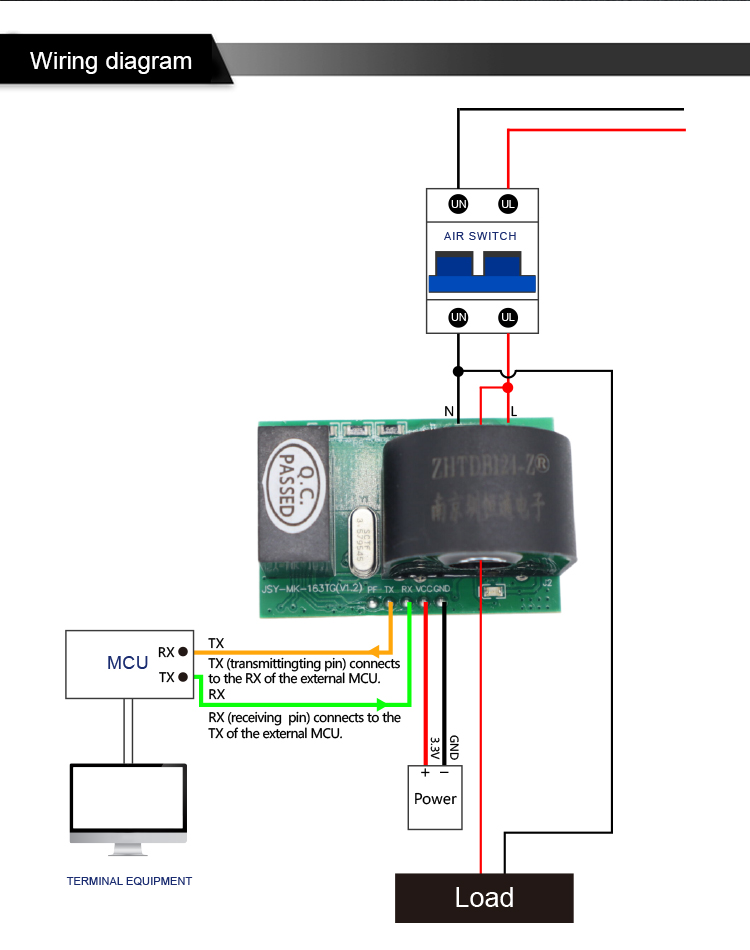

Wiring and hole position description

JSY-MK-163TG single-phase energy meter module

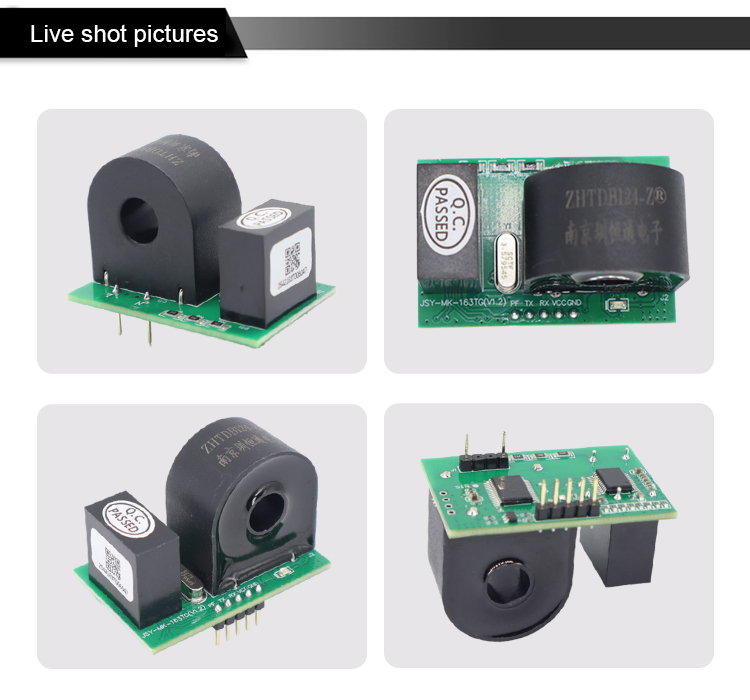

Product detail pictures:
