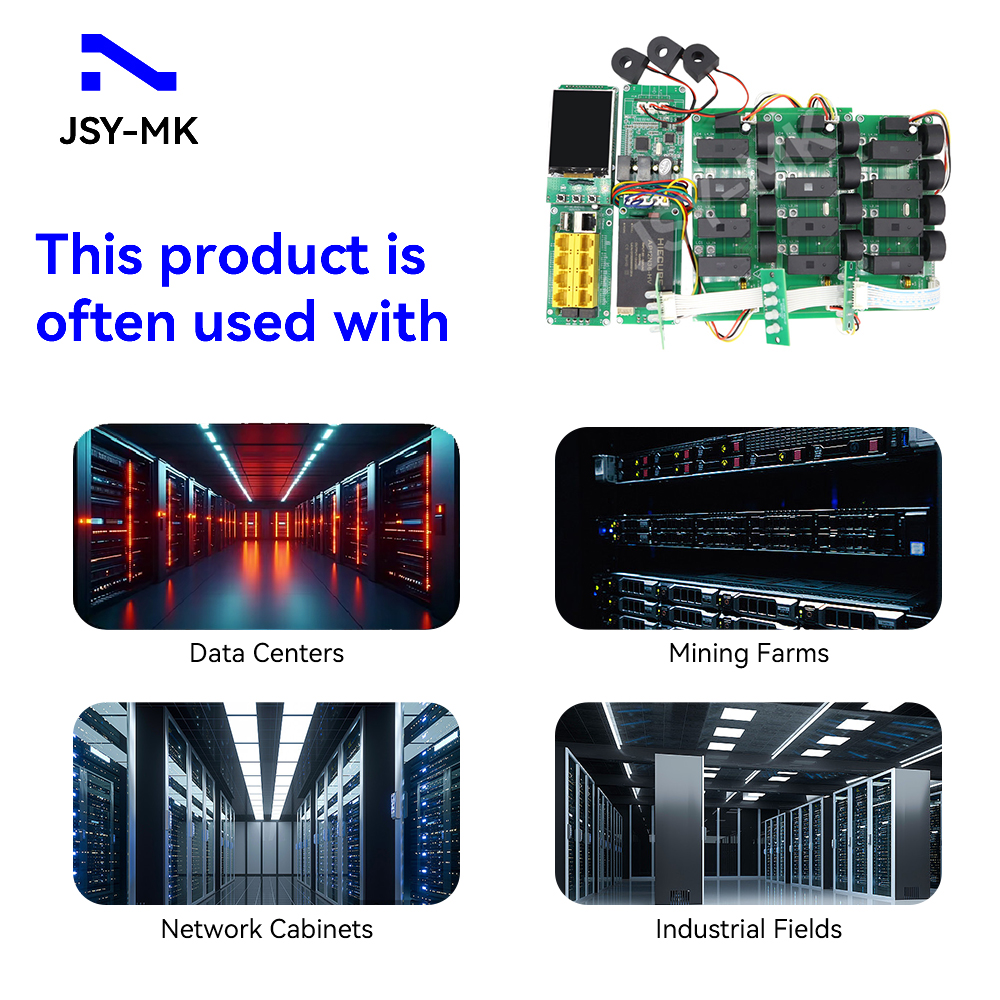

Intelligent IP PDU Board | For Rack Mount PDU Vertical or Horizontal Options

JSY-MK-810 | JSY-MK-365 | JSY1084 *3



Description:

- An IP PDU board (Intelligent Power Distribution Unit board) is the core electronic control component of a smart PDU, designed to manage, monitor, and distribute electrical power to rack-mounted IT equipment via a network. These boards enable remote outlet control (switching on/off), real-time power monitoring (voltage, current, power consumption), and environmental sensing (Temperature, Humidity, Water Immersion, Door Access, Control Smoke) for data center efficiency.



-  Save space used our Rack Mount PDU board. Available in vertical and Horizontal Options. Metered, switched, and monitored models for data centers and server rooms.


Product Detail

OEM/ODM SERVICES

CUSTOMER SERVICES

Product Tags

Related Video

Feedback (2)

We take "customer-friendly, quality-oriented, integrative, innovative" as objectives. "Truth and honesty" is our management ideal for Track Power Meter , Switchboard Power Monitor , Electric Current Ammeter , We have expanded our business into Germany, Turkey, Canada, U. S. A. , Indonesia, India, Nigeria, Brazil and some other regions of the world. We are working hard to be one of the best global suppliers.
Intelligent IP PDU Board | For Rack Mount PDU Vertical or Horizontal Options Detail:

pdu pcb board

IPDU Product Components

IP PDU PCB Board

Model No.: JSY-MK-810

Intelligent IP PDU PCB Main Board

① 2.8-inch LCD Display
② Protocol - SNMP V1/V2c/V3 | Modbus-RTU
③ 1 port - Ethernet [Network connection/remote access]
④ 2 Ports -RS485 [Cascade/parameter configuration]
⑤ 1 port - USB [software upgrade]
⑥ 2 ports - Temperature and humidity
⑦ 2 ports - Switch input [ Supports water immersion, door access control, smoke detection]
⑧ 1 port - Switch output
⑨ 1 port - RS485 [reserved function]
power board

Model No.: JSY-MK-365

Three Phase Power Meter Board



- Voltage: 3*220V/380V
- Current: 3*63A
- Power supply: 3*220V/380V(from A phase)
- Communication interface: RS485
- Frequency: 50Hz
- Accuracy: ±1%
relay board

Model No.: JSY1084

4-channel Relay Control Board(magnetically held relay)



  • ①220V AC input
  • ②4-channel 50A current detection
  • ③4-channel 50A magnetic retention relay control
  • ④4-channel indicator output
  • ⑤Accuracy: ±1%

IPDU Product Introduce

  • Single-phase and three-phase smart PDU meters are based on the innovative SUM (sustainable, scalable and maintainable) design concept technology. As a key component of the metering cabinet power distribution unit (PDU), after being installed into the main body of the PDU, it can Provides active metering capabilities for energy optimization and circuit protection. User-set alarm thresholds can effectively reduce risks by warning of potential circuit overloads through real-time local and remote alarms. Metered rack PDUs provide power usage data to support data center managers in making informed decisions about load balancing and proper IT sizing, thereby significantly reducing total cost of ownership. Users can configure metered cabinet PDU via Ethernet access or RS485. This series of products can be widely used in data center rooms such as IDC, banks, securities, governments, and enterprises.
pdu pcb board
Intelligent IP PDU Board
pdu pcb board
JSY-MK-810 Function Introduction
Performance parameters     Technical indicators
Electrical parameters Input
Optional		 Single Phase Input voltage: 176-264V

      Maximum total load current: 63A
    Three-phase Input voltage: 3*220V
      Maximum total load: 3*63Acurrent
  Output Output Voltage 176-264V
    Output Current 8A, optional high current 20A
    Output Port Optional, up to 48 ports
    Frequency 50Hz
User interface   Display TFT color screen, 2.8 Inches
    Operation buttons Up, down, set, reset buttons
    Communication interface One Ethernet, two RS485
    Temperature and humidity interface Two ports
    Switch input interface Two ports, 4 channels
    Switch output interface One port, 2 channels
Electrical parameter measurement   PDU total measurement Voltage, current, power, electric energy
    Each output measurement Voltage, current, power, electric energy
    Each output can be remotely turned on/off Yes
    Customize the power-on/power-off sequence and interval time for each output Yes
    Administrator permissions can be defined in different levels Yes
    Customize alarm signal thresholds Voltage and current adjustable
    Cascade function Yes, 4 units can be cascaded
Monitoring function   Load current monitoring
    Load power monitoring
    Voltage monitoring
    Power monitoring
    Ambient temperature and humidity monitoring
Setting the function   Load current upper and lower limit settings
    Ambient temperature and humidity upper and lower limit settings
    Email alert address settings
    SNMP (V1, V2c,V3) settings
    Network parameter settings (IP, gateway, mask, DNS )
Alarm function System Alerts When the load current exceeds the rated value
    When the temperature and humidity exceed the limit
  Custom Alerts When the load current exceeds the rated value
    When the temperature and humidity exceed the limit
  Alerts Way Buzzer beeps
    LCD value flashes
    Automatically send an email to the system administrator
    SNMP sends Trap alarm status information
    Serial communication background sends alarm status information
Access method   WEB access and control through IE
    SNMP (V1,V2c,V3) access and control via standard network management workstation
User Management   User ID and password settings
Environment   Operating temperature -20 ~ 60℃
    Extreme operating temperature -30 ~ 70℃
    Relative humidity 10 ~ 90%
    Storage and transportation temperature limit -40 ~ 70℃
pdu pcb board
pdu pcb board
relay board

IPDU Product Network Functions Interface Show

  • - Support WEB method to log in to the management page, and use user name + password to realize the login function.
  • - The interface includes the main interface, output information interface, sensor information interface, network setting interface, device information interface, user management interface and factory reset interface.
pdu
Factory Direct Sale PDU
Hot Swap Meter Head
Single-phase Ammeter
Intelligent IP Meter
