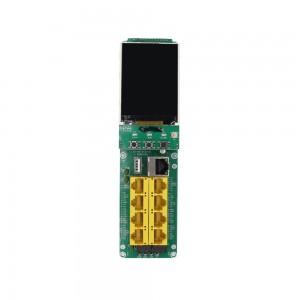

| JSY-MK-810 Function Introduction | |||
| Performance parameters | Technical indicators | ||
| Electrical parameters | Input Optional |
Single Phase | Input voltage: 176-264V |
| Maximum total load current: 63A | |||
| Three-phase | Input voltage: 3*220V | ||
| Maximum total load: 3*63Acurrent | |||
| Output | Output Voltage | 176-264V | |
| Output Current | 8A, optional high current 20A | ||
| Output Port | Optional, up to 48 ports | ||
| Frequency | 50Hz | ||

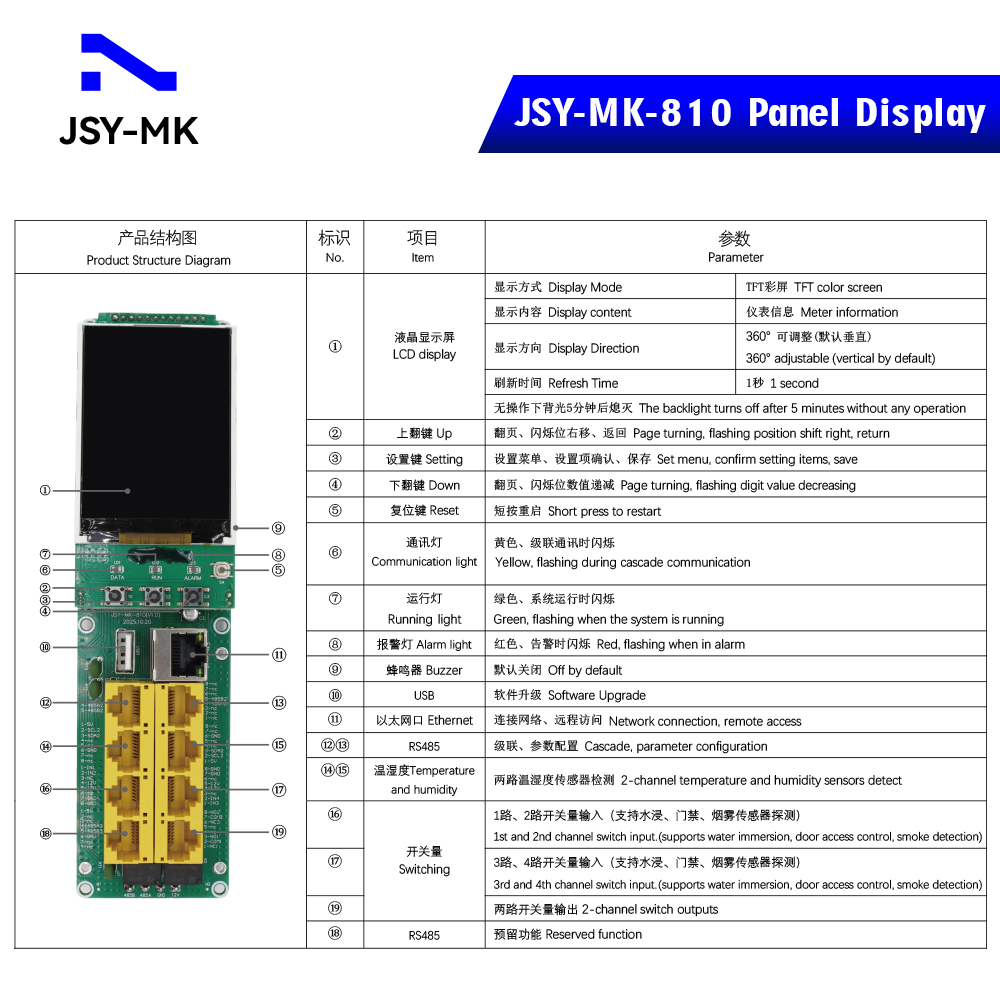

| User interface | Display | TFT color screen, 2.8 Inches | |
| Operation buttons | Up, down, set, reset buttons | ||
| Communication interface | One Ethernet, two RS485 | ||
| Temperature and humidity interface | Two ports | ||
| Switch input interface | Two ports, 4 channels | ||
| Switch output interface | One port, 2 channels | ||
| Electrical parameter measurement | PDU total measurement | Voltage, current, power, electric energy | |
| Each output measurement | Voltage, current, power, electric energy | ||
| Each output can be remotely turned on/off | Yes | ||
| Customize the power-on/power-off sequence and interval time for each output | Yes | ||
| Administrator permissions can be defined in different levels | Yes | ||
| Customize alarm signal thresholds | Voltage and current adjustable | ||
| Cascade function | Yes, 4 units can be cascaded | ||
| Monitoring function | Load current monitoring | ||
| Load power monitoring | |||
| Voltage monitoring | |||
| Power monitoring | |||

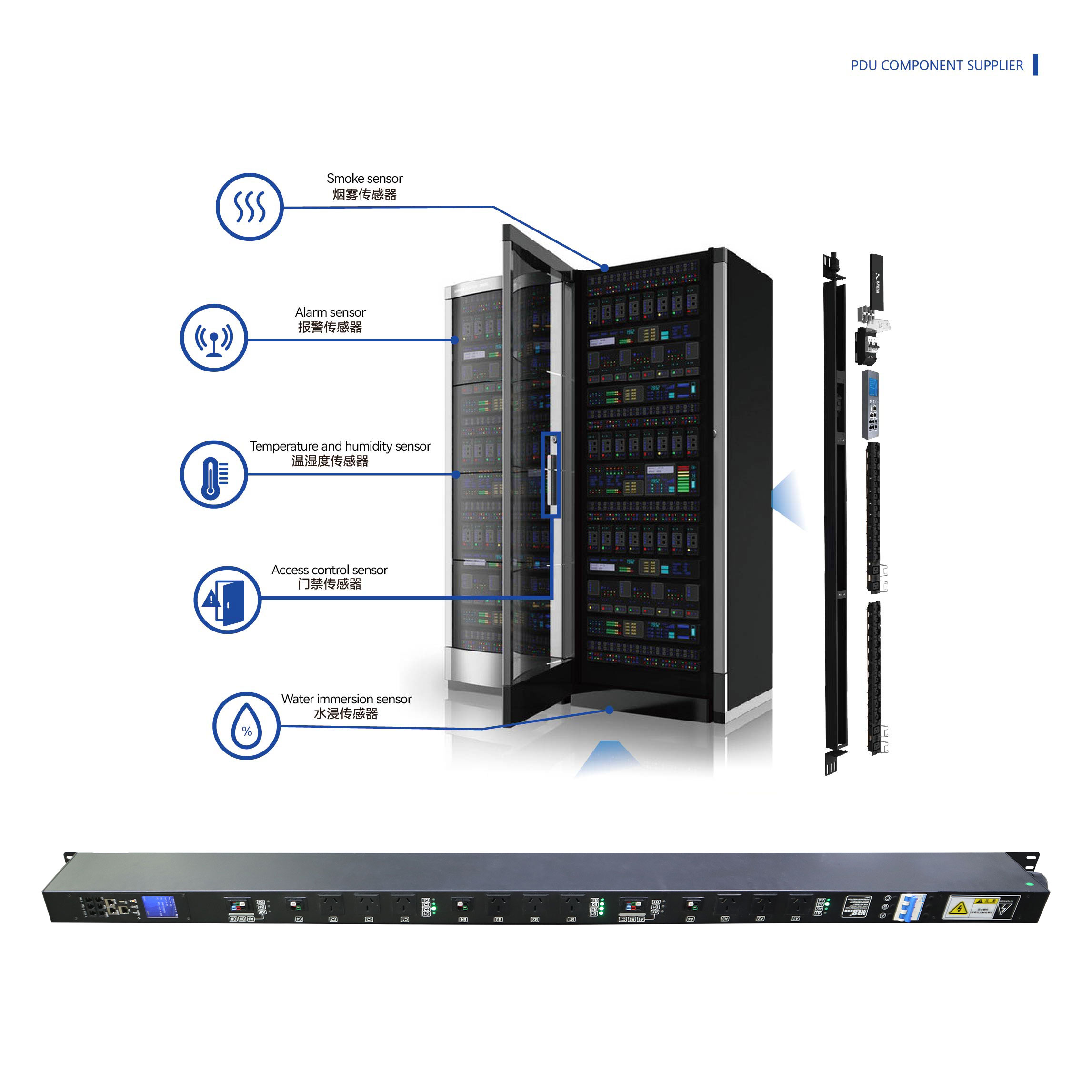

| Ambient temperature and humidity monitoring | |||
| Setting the function | Load current upper and lower limit settings | ||
| Ambient temperature and humidity upper and lower limit settings | |||
| Email alert address settings | |||
| SNMP (V1, V2c,V3) settings | |||
| Network parameter settings (IP, gateway, mask, DNS ) | |||
| Alarm function | System Alerts | When the load current exceeds the rated value | |
| When the temperature and humidity exceed the limit | |||
| Custom Alerts | When the load current exceeds the rated value | ||
| When the temperature and humidity exceed the limit | |||
| Alerts Way | Buzzer beeps | ||
| LCD value flashes | |||
| Automatically send an email to the system administrator | |||
| SNMP sends Trap alarm status information | |||
| Serial communication background sends alarm status information | |||
| Access method | WEB access and control through IE | ||
| SNMP (V1,V2c,V3) access and control via standard network management workstation | |||
| User Management | User ID and password settings | ||
| Environment | Operating temperature | -20 ~ 60℃ | |
| Extreme operating temperature | -30 ~ 70℃ | ||
| Relative humidity | 10 ~ 90% | ||
| Storage and transportation temperature limit | -40 ~ 70℃ | ||
