Intelligent IP PDU Boards: Precision Power Distribution for Modern Data Center Infrastructure

Introduction

  • In today's data-driven world, intelligent energy management is essential. JSY-MK (Shenzhen Jiansiyan Technologies) has been engineering high‑precision AC/DC energy metering solutions since 2009. Our PDU METER series (Intelligent IP PDU Boards) is designed to seamlessly integrate into a wide range of IT and telecom infrastructure deployments — from micro data centers and seismic‑rated rack cabinets to outdoor telecom enclosures and high‑density enterprise server rooms.
  • The series delivers billing‑grade energy accuracy (±1%), remote IP control (SNMP v1/v2c/v3), environmental sensor integration, and scalable outlet‑level metering/switching capabilities.
pdu pcb board

JSY-MK PDU METER Series - Product Highlights

  • All JSY-MK PDU METER products are built around the SUM design philosophy — Sustainable, Scalable, and Maintainable. The lineup includes.

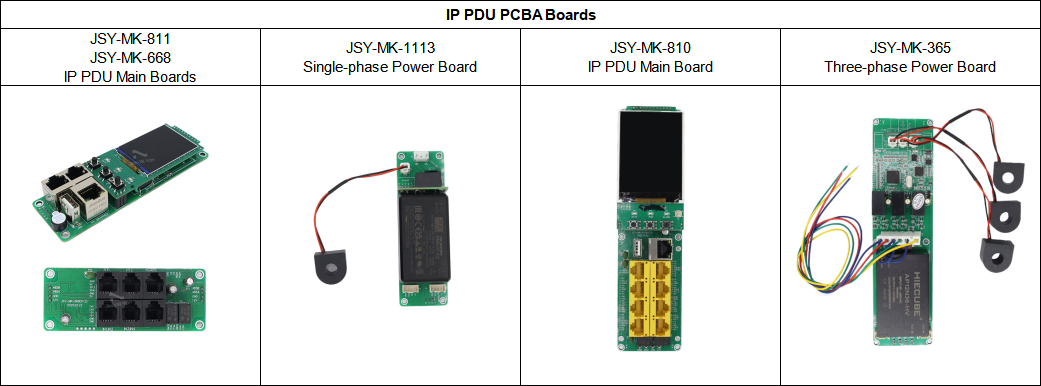

ip pdu

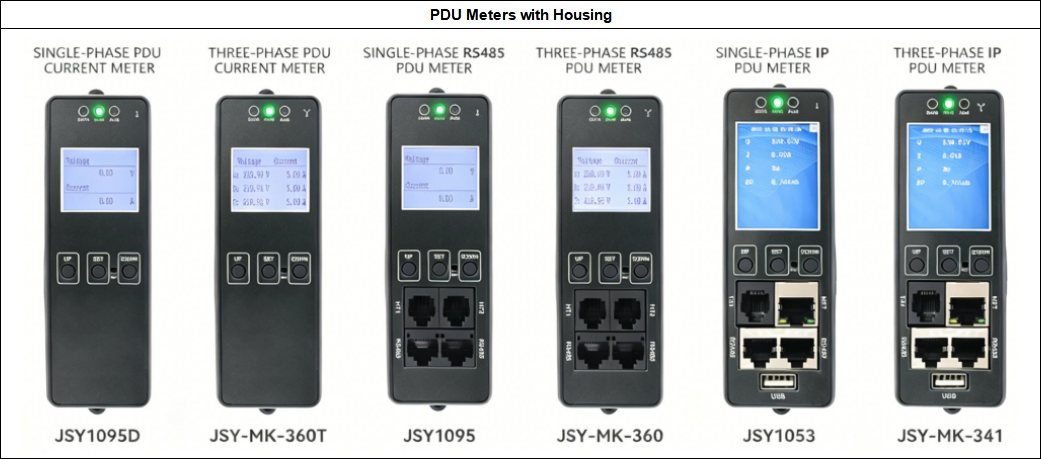

pdu meter

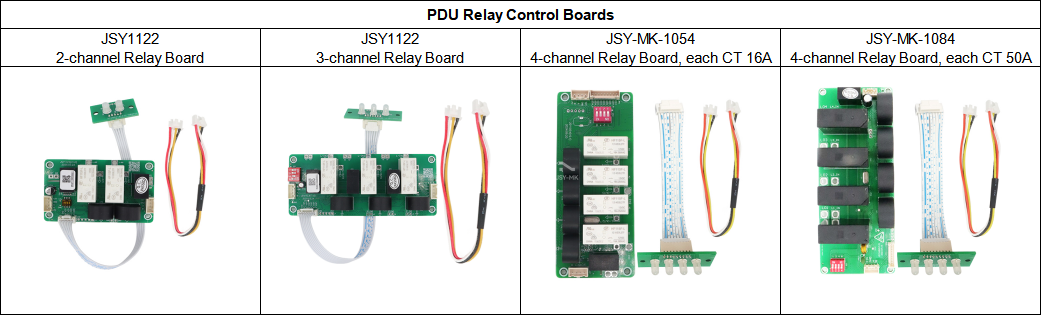

Relay board

Tailored Application Scenarios

Micro Data Center Power Intelligence

  • Micro data center solutions typically integrate UPS, cooling, fire suppression, a Power Distribution Unit (PDU), and Environmental Monitoring System (EMS) into a single compact cabinet. These are deployed in spaces without raised floors or external cooling units, serving SMEs, branch offices, warehouses, and educational institutions.
  •  JSY‑MK contribution: Compact PDU meter heads (JSY1053, JSY‑MK‑341, JSY-MK-811,JSY-MK-810) fit seamlessly into micro data center cabinets. With built‑in ±1% billing‑grade metering, Ethernet/IP control, RS485 cascade, and optional temp/humidity sensors via RJ11 /RJ45 ports, our PDUs enable.
  •  Real‑time rack power consumption monitoring from the EMS dashboard.
  •  Remote outlet‑level switching for power cycling and load shedding.
  •  Accurate PUE calculations and capacity planning within a compact footprint.
  •  The result - a turnkey micro data center with enterprise‑grade power intelligence.

Seismic Rack Cabinets - Resilient Power Under Any Condition

  • In earthquake‑prone regions, seismic rack cabinets feature reinforced steel construction, advanced cable management, and integrated cooling to protect servers and network devices during physical shocks.
  • JSY‑MK contribution: Robust, industrial‑grade PDU boards withstand vibration and environmental stress. Key integrations include.
  • Vertical or horizontal mounting options that do not interfere with cable management or airflow.
  • RS485 cascade networking, reducing cabling complexity while maintaining reliable communication.
  • SNMP v3 and MODBUS‑RTU protocols, ensuring secure remote management without on‑site intervention — minimizing the need to open reinforced doors during operation.
  • Our PDUs help maintain infrastructure stability and uptime, even in demanding physical environments.

Telecom Cabinets- Outdoor‑Ready Power Distribution

  • Outdoor telecom cabinets protect servers, routers, and switches against water, dust, humidity, and extreme temperatures.

  • JSY‑MK contribution: JSY‑MK PDUs integrate into outdoor telecom cabinets with features tailored for remote, unattended sites.
  • Wide operating temperature range (-20~+60℃) for reliable performance in harsh outdoor conditions.
  • Master‑slave RS485 cascade architecture: up to four PDU instruments share a single management dashboard, reducing network ports and centralizing remote oversight across distributed sites.
  • Environmental sensor integration (temperature/humidity, water immersion, smoke) via RJ11 or RJ45 interfaces — directly linking cabinet‑level data with power metrics in the DCIM/NMS.
  • With these capabilities, telecom cabinets become self‑aware, reporting both power consumption and environmental status back to central operations without costly on‑site visits.

Data Centers & Enterprise Server Rooms - High‑Density, Billing‑Grade PDUs

  • For larger data center deployments and enterprise server rooms, JSY‑MK offers high‑density intelligent PDU solutions (e.g., JSY‑MK‑810 with up to 48 outlets, 8A standard / optional 20A high current) supporting both single‑phase and three‑phase environments.

JSY-MK contribution

Billing-grade ±1% accuracy

  • Track real‑time voltage, current, power, power factor, energy (kWh), and frequency for colocation billing, PUE optimization, and granular capacity planning.

Outlet‑level switching with magnetic latching relays

  •  Remote power‑on/off and scheduled reboots without affecting adjacent circuits.

Embedded WEB management & SNMP V1/V2c/V3 support

  • Seamless integration with existing DCIM or NMS — with SNMPv3 encryption for high‑security deployments.

Three‑level custom alarms

  • Three‑level custom alarms (general, warning, critical) with buzzer, LCD blink, email push, and SNMP Trap delivery — up to 100 alarm records auto‑logged.

NTP periodic time

  • NTP periodic time sync (every 10 minutes) for perfect audit trail alignment.

Why Choose JSY‑MK Intelligent PDUs

Infrastructure Need JSY‑MK Solution
Turnkey micro data center with integrated power management Compact PDU meter heads with ±1% accuracy, Ethernet/IP, modular design
Seismic‑rated cabinets requiring vibration‑tolerant electronics Industrial‑grade PDU boards with RS485 cascade, SNMP remote control, wide temperature tolerance
Outdoor telecom cabinets needing environmental monitoring Built‑in RJ11 or RJ45 ports for temp/humidity/water/smoke sensors, linking cabinet‑level data to power metrics
High‑density data center with remote outlet‑level switching JSY‑MK IP PDU Modules (up to 48 outlets, 20A high current), SNMP v3, master‑slave cascade, NTP sync
Custom OEM PDU modules 17+ years OEM/ODM experience — custom form factors, outlet types, communication protocols, and labeling
pdu

Conclusion

  • From a micro data center cabinet to a seismic‑rated rack in an earthquake‑prone region, from an outdoor telecom installation to a high‑density colocation facility — JSY‑MK’s Intelligent IP PDU Boards deliver reliable, precise, and remotely manageable power distribution. Engineered to integrate seamlessly with world‑class IT and telecom infrastructure, our PDU METER series helps your customers gain control, efficiency, and peace of mind.

Partner with JSY‑MK

  • Let‘s build the future of intelligent power distribution together.
  • Learn more: www.jsypowermeter.com
